You’ll create multi-zone climate control by installing smart thermostats in each zone with motorized dampers in your ductwork to modulate airflow independently. Position wireless sensors throughout each domain for real-time thermal feedback, then connect everything to a central control unit that synchronizes operations. Configure zone-specific setpoints through your smart thermostat’s interface and program automated schedules based on occupancy patterns. This systematic approach delivers 15-30% energy reduction while maintaining personalized comfort across discrete control domains, and proper sensor deployment with strategic damper positioning guarantees peak system performance throughout your implementation.
Key Takeaways
- Install smart thermostats in each zone with compatible wireless sensors to enable independent temperature control and real-time monitoring.
- Conduct Manual J load calculations to determine BTU requirements and ensure proper HVAC system sizing for each zone.
- Configure motorized dampers in ductwork to modulate airflow precisely based on zone-specific temperature setpoints and occupancy patterns.
- Program automation schedules using geofencing and occupancy detection to reduce energy consumption by 15-30% in unoccupied zones.
- Verify communication protocol compatibility between thermostats and control boards, engaging certified technicians for complex integrations and calibration.
Understanding Zone Temperature Systems
When properly configured, zone temperature systems partition residential HVAC infrastructure into discrete control domains, each governed by dedicated thermostats that command independent temperature setpoints.

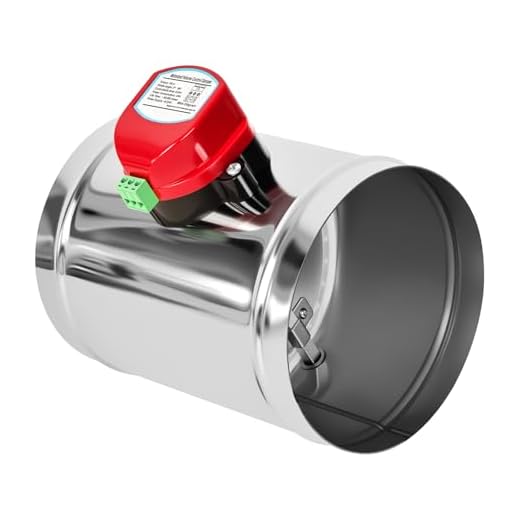

This architecture utilizes motorized dampers integrated within your ductwork to modulate airflow distribution, enabling precision zone control across designated areas. Wireless sensors augment this capability by transmitting real-time thermal data to your central processing unit.
You’ll achieve ideal temperature regulation through strategic implementation of smart thermostats that execute algorithmic learning protocols. These devices analyze occupancy patterns and environmental variables, then autonomously adjust parameters to maintain specified thermal conditions.
The system’s efficiency derives from targeted climate management—you eliminate wasteful energy expenditure on unoccupied spaces.
Critical to deployment success is HVAC compatibility verification. Not all thermostat hardware supports zoning protocols, necessitating thorough specification review before procurement.
When executed correctly, you’ll realize 15-30% energy reduction compared to conventional single-zone configurations, establishing superior environmental command while enhancing operational costs. Modern smart home devices integrate seamlessly with multi-zone systems to provide comprehensive control and monitoring capabilities throughout your residence.
Benefits of Multi-Zone Control
Multi-zone climate control delivers quantifiable performance advantages through differential thermal management across your residential infrastructure.
Strategic zone segmentation optimizes thermal distribution, enabling precision environmental control while substantially reducing energy expenditure across your residential systems.
You’ll command precise environmental conditions in each operational area while maximizing system efficiency. This architecture converts your standard HVAC into a strategically segmented climate network.
Core Performance Metrics:
- Energy efficiency: Achieve 15-30% reduction in consumption by eliminating thermal waste in unoccupied zones
- Personalized comfort: Deploy independent setpoints across zones, accommodating varying occupant preferences simultaneously
- Smart integration: Execute remote temperature modifications through mobile interfaces and voice-activated protocols
- Targeted environmental control: Regulate zone-specific temperature and humidity parameters for peak air quality maintenance
- Usage-pattern enhancement: Align thermal output with room utilization schedules, driving down operational costs
You’ll utilize intelligent thermostat technology to monitor and adjust multi-zone parameters in real-time.
Advanced models with humidity sensing and multi-zone control can increase your energy savings by 15-30% compared to single-zone configurations.
This system architecture delivers superior environmental control while reducing monthly utility expenditures through strategic resource allocation.
Essential Equipment and Components
Your multi-zone architecture requires a coordinated assembly of intelligent hardware components that’ll integrate into a unified thermal management system. Deploy multiple smart thermostats strategically across designated zones to establish autonomous temperature domains. Wireless sensors provide real-time thermal and occupancy data, enabling predictive load balancing and demand-response protocols.
| Component | Function | Impact |
|---|---|---|
| Smart Thermostats | Zone-specific thermal regulation | Precision control |
| Wireless Sensors | Environmental monitoring | Data-driven enhancement |
| Radiator Valves | Individual emitter modulation | Granular adjustment |
Smart radiator valves deliver room-level thermal authority, maximizing energy efficiency by isolating unoccupied spaces. Your central control unit orchestrates inter-zone communication protocols, synchronizing operations across the distributed network. Cloud-enabled mobile app interfaces grant remote command authority, allowing real-time parameter adjustments and scheduling modifications. Advanced systems can automatically detect open windows and adjust heating accordingly to reduce energy waste and prevent unnecessary climate control in compromised zones. This integrated ecosystem changes your HVAC infrastructure into a responsive, intelligent climate management platform that reduces operational costs while maintaining ideal environmental conditions throughout your property.
Installation Process From Planning
Your multi-zone system’s performance depends on executing a structured installation sequence that begins with thorough spatial analysis and load calculations.
You’ll need to assess your home’s architectural layout, quantify BTU requirements for each designated zone, and verify compatibility between your selected HVAC components and control hardware.
Proper execution requires precise zone boundary mapping, followed by systematic thermostat wiring that establishes reliable communication pathways between controllers, sensors, and damper actuators.
Assess Your Home Layout
Before implementing a multi-zone climate control system, you’ll need to conduct an extensive spatial analysis of your residence to map thermal load distributions and occupancy patterns.
Partition your structure into discrete home zones based on heating needs, solar gain coefficients, and envelope performance metrics. Document architectural variables: fenestration orientation, R-values, and cubic footage per zone.
Evaluate existing mechanical infrastructure—forced air systems, hydronic configurations, and damper compatibility. Map current thermostat placements against load centers to identify optimization opportunities.
Develop granular occupancy matrices correlating time blocks with zone utilization rates. This data enables precision-calibrated setpoint programming.
Position your master control unit at the primary thermal reference point, isolated from external heat sources and air infiltration pathways.
Strategic sensor deployment across zones provides the differential feedback necessary for autonomous system modulation and maximum efficiency extraction.
Calculate Heating Cooling Loads
With zone boundaries established and spatial parameters documented, quantifying thermal loads becomes the next critical engineering task.
Execute Manual J load calculations to determine precise BTU requirements for each zone, accounting for insulation quality, window orientation, and occupancy patterns.
Analyze heat gain through fenestration and building envelope penetrations to establish baseline thermal profiles. Your temperature management strategy depends on accurate assessment of seasonal demands—winter heat loss calculations must balance summer cooling requirements.
Factor in internal loads from equipment and human activity to refine energy efficiency projections.
Deploy thermostats strategically based on thermal stratification patterns and solar exposure data.
Recalculate loads after any structural modifications or usage changes to maintain system optimization.
This analytical rigor guarantees your multi-zone architecture delivers commanded performance across all operational scenarios.
Select Compatible System Components
Three critical equipment categories require synchronized specification to achieve functional multi-zone architecture. Your HVAC infrastructure must support multi zone compatibility through damper systems or multiple air handlers.
Select smart thermostats with proven interoperability—the ecobee Smart Thermostat Premium and Google Nest Learning Thermostat deliver enterprise-grade multi-zone coordination. Verify communication protocols match your existing control boards before procurement.
Deploy wireless sensors strategically across expansive zones to eliminate temperature differential errors. These peripheral units feed real-time data to your central thermostat, enabling precision thermal management.
Smart thermostat features like geofencing, occupancy detection, and algorithmic learning amplify system efficiency when properly configured.
Execute installation per manufacturer specifications or engage certified HVAC technicians for complex integrations. Misaligned components compromise entire system performance—professional calibration guarantees ideal zone coordination and maximum thermal authority over your environment.
Map Zone Boundaries Properly
Strategic zone mapping requires systematic spatial analysis of your home’s thermal characteristics and occupancy fluctuations.
Deploy zone identification strategies by documenting solar gain patterns, occupancy schedules, and functional space requirements across your property. Reference architectural floor plans to position thermostats and sensors at ideal data collection points, eliminating interference from heat sources or drafts that compromise measurement accuracy.
Implement temperature adjustment techniques by accounting for structural elements—walls, doors, HVAC ductwork—that influence thermal transfer between spaces.
Define boundaries that align with existing airflow infrastructure to enhance system efficiency. Bedrooms, living areas, and home offices demand discrete control parameters based on usage intensity and duration.
Validate your zone configuration with an HVAC specialist to confirm compatibility with current mechanical systems and verify adequate capacity for multi-zone operation before proceeding with installation.
Wire and Configure Thermostats
Successful thermostat installation hinges on methodical circuit verification and systematic component integration throughout your multi-zone infrastructure.
Execute precision wiring techniques by following manufacturer schematics explicitly, ensuring proper voltage allocation across all zones. Terminate each conductor at designated ports—typically R (power), C (common), Y (cooling), W (heating), and G (fan)—verifying continuity before energizing circuits.
Your thermostat configurations demand zone-specific programming through dedicated control interfaces. Access each unit’s commissioning mode to establish communication protocols with your central HVAC controller. Configure operational parameters including temperature differentials, cycle rates, and priority hierarchies among competing zones.
Implement demand-response algorithms that enhance energy distribution based on occupancy patterns and thermal load calculations. Validate system integrity through thorough diagnostic sequences, confirming each zone responds independently while maintaining coordinated operation across your entire climate management network.
Automation Schedules and Smart Integrations
While manual zone control provides basic temperature management, automation schedules change your multi-zone HVAC system into a self-enhancing climate network that adapts to occupancy patterns and environmental conditions.
Smart integration with voice assistants—Google Home, Alexa, and Apple HomeKit—delivers command-level control through natural language protocols.
Automation benefits include:
- Temporal programming: Configure zone-specific temperature profiles aligned with circadian rhythms and occupancy schedules
- Geofencing detection: Automatic system adjustments triggered by smartphone proximity sensors, eliminating energy waste during vacancy periods
- Scenario-based profiles: Deploy pre-programmed climate configurations for specific events—guest entertainment, sleep cycles, or morning activation sequences
- Remote monitoring dashboards: Mobile application interfaces provide real-time zone diagnostics and adjustment capabilities from any location
- Adaptive learning algorithms: Systems analyze usage patterns and automatically enhance schedules for maximum efficiency and comfort delivery
This intelligent automation architecture changes reactive climate control into a predictive system that anticipates your requirements while minimizing operational costs. Implementing these smart device integrations creates a seamless smart living environment that responds to your household’s unique patterns and preferences.
Zoning Errors That Waste Energy
Despite sophisticated automation capabilities, multi-zone climate systems frequently underperform due to configuration errors that compromise efficiency metrics and inflate operational costs.
You’re likely implementing counterproductive thermostat settings without recognizing the impact. Setting unused zones to extreme temperatures doesn’t deactivate them—it maintains continuous HVAC operation, wasting 20-30% energy annually. Conflicting zone parameters trigger simultaneous heating and cooling cycles, degrading system efficiency and accelerating component wear by 15-20%.
Common zoning misconceptions directly undermine performance enhancement:
| Configuration Error | Energy Impact | System Consequence |
|---|---|---|
| Extreme temperature setpoints in vacant zones | 20-30% consumption increase | Continuous HVAC cycling |
| Inconsistent zone temperature differentials | Simultaneous heating/cooling | Thermal warfare between zones |
| Disabled occupancy sensors and scheduling protocols | Unnecessary operation hours | Premature equipment degradation |
You’ll optimize control authority by implementing coordinated zone schedules, moderate setpoint differentials, and active sensor integration. These corrections eliminate operational conflicts while extending equipment lifespan and reducing energy expenditure.
Cost Comparison by System Type
Investment requirements for multi-zone climate control vary substantially across system architectures, with equipment specifications and integration complexity driving cost differentials of 150-300% between deployment models.
| System Type | Smart Thermostat Features | Installation Cost Analysis |
|---|---|---|
| Central HVAC | Zone dampers, wireless sensors, scheduling | $1,000-$3,000 complete setup |
| Electric Baseboards | Line-voltage compatibility, load management | $300-$700 per thermostat |
| Mini Split Heat Pumps | Individual head control, advanced staging | $2,000-$5,000 system-wide |
Your ROI calculation must account for 15-30% energy reduction potential. Electric systems demand specialized equipment like Mysa controllers, increasing per-unit expenditure but enabling granular load control. Mini splits require higher capital deployment yet deliver superior zoning precision without ductwork modifications. Central systems utilize existing infrastructure, positioning them as the most cost-effective retrofit option when ductwork supports damper integration. Standard smart thermostats ($200-$500 each) suffice for conventional applications, while electric configurations necessitate premium hardware investment.
Diagnosing Temperature Imbalance Issues
Why do certain zones consistently deviate from setpoint temperatures despite properly configured control systems?
Thermostat placement directly impacts system performance. You’ll need to verify sensors aren’t compromised by environmental interference—drafts, solar radiation, or localized heat sources create false readings that corrupt your control loop.
Execute systematic diagnostics:
- Conduct sensor calibration across all zones to eliminate measurement drift and establish baseline accuracy.
- Verify damper actuation throughout the ductwork—stuck or partially closed dampers restrict airflow and sabotage zone control.
- Analyze thermostat positioning to confirm devices aren’t mounted near windows, exterior walls, or HVAC registers.
- Audit occupancy schedules against actual usage patterns to identify programming mismatches causing thermal lag.
- Deploy smart thermostat algorithms leveraging geofencing and occupancy detection for adaptive, real-time zone compensation.
Temperature imbalances stem from three failure modes: sensor error, mechanical restriction, or control logic mismatch.
Your diagnostic protocol must address each systematically to restore precision temperature regulation across all zones.
Step-by-Step Damper Adjustment Walkthrough
Once you’ve isolated sensor errors and mechanical restrictions through diagnostics, you’ll need to execute precise damper adjustments to achieve target airflow distribution. Access your ductwork’s damper control mechanisms and use a flathead screwdriver to calibrate each zone’s valve position. Clockwise rotation restricts airflow volume, while counterclockwise expansion increases thermal distribution capacity—these damper adjustment tips facilitate surgical precision in climate management.
Deploy systematic airflow enhancement techniques by establishing baseline measurements across all zones simultaneously. Document initial damper positions, then implement incremental adjustments of 15-degree rotations. Allow 72 hours for thermal equilibrium assessment before secondary calibration cycles. This methodical approach eliminates guesswork and optimizes system efficiency.
Label each damper with zone identification and ideal position markers—this documentation protocol guarantees repeatable performance and simplifies future maintenance operations.
Your control infrastructure now possesses the granular adjustment capability necessary for dominant environmental management. Strategic damper positioning alters basic HVAC systems into precision climate engineering platforms that respond to your exact specifications.
Selecting Your Ideal System
Before committing to hardware procurement, you’ll need to analyze your existing HVAC infrastructure’s architectural constraints and thermal load distribution characteristics.
System compatibility drives your selection parameters—verify whether your forced-air configuration supports zone dampers or requires ductless mini-split integration.
Thermostat types must align with your control architecture: Ecobee Smart Thermostat Premium and Google Nest Learning Thermostat offer wireless sensor networks for precision temperature mapping across zones.
Each zone demands dedicated thermostat deployment for granular control authority.
Evaluate your facility’s occupancy patterns and spatial topology to enhance sensor placement and amplify thermal efficiency gains.
Advanced units provide centralized command interfaces through unified application ecosystems, consolidating multi-zone management into singular control planes.
Engage certified HVAC technicians to conduct load calculations and validate installation feasibility.
They’ll assess ductwork capacity, electrical requirements, and zoning methods that complement your system’s specifications.
This technical evaluation prevents configuration failures and guarantees your multi-zone architecture delivers targeted climate dominance throughout your property.
Frequently Asked Questions
Can I Add Zone Control to My Existing HVAC System?
You can retrofit zone control to your existing HVAC system by installing motorized dampers in your ductwork and integrating zone controllers with compatible smart thermostats.
Zone control benefits include reduced energy consumption, improved comfort precision, and refined system performance.
Existing HVAC compatibility depends on your unit’s capacity and duct infrastructure—you’ll need adequate CFM ratings and proper return air pathways.
You’re fundamentally changing a single-zone system into a sophisticated, multi-zone climate management platform that delivers targeted temperature control.
Will Multi-Zone Thermostats Work During Internet or Power Outages?
When the chips are down, your multi-zone system’s thermostat functionality degrades considerably during outages.
You’ll lose Wi-Fi connectivity and smart features, but most units maintain basic temperature control through battery backup or hardwired power.
For strong outage solutions, you’ll need uninterruptible power supplies (UPS) for zone controllers and cellular backup modules.
Hardwired thermostats with mechanical relays provide the most dependable failover operation, ensuring your damper actuators and HVAC equipment remain operational when infrastructure fails.
Do Smart Thermostats Require Professional Monitoring or Monthly Subscription Fees?
No, you don’t need professional monitoring or subscription fees for basic smart thermostat features. Core functionality—temperature control, scheduling, and zone management—operates independently without subscription cost.
However, manufacturers offer optional premium tiers for advanced analytics, extended warranty coverage, and cloud storage.
You’ll retain full autonomous control over your HVAC system regardless. The baseline architecture delivers complete climate authority without recurring payments, though improved capabilities remain available at your discretion.
Can I Control Zones From Multiple Smartphones or User Accounts?
Yes, you’ll find multi-user access standard across premium systems—72% of households grant zone control to 3+ devices simultaneously.
Your smartphone compatibility extends across iOS and Android platforms, enabling distributed authority over individual HVAC zones.
You’re deploying role-based permissions through the master control interface, assigning granular access rights per zone.
Each authorized user account maintains independent scheduling protocols while you retain administrator privileges.
This architecture guarantees command hierarchy without sacrificing operational flexibility across your climate control network.
Will Zoning Affect My HVAC System’s Warranty Coverage?
Zoning can void your HVAC system’s warranty coverage if you’re not careful.
Most manufacturers impose warranty limitations on unauthorized HVAC modifications, particularly retrofit damper installations. You’ll need to verify your specific warranty terms and guarantee your contractor follows manufacturer-approved protocols.
Professional installation by certified technicians typically preserves coverage, while DIY zoning systems often trigger exclusions.
Document everything—installation specs, equipment specifications, and contractor credentials—to maintain warranty protection and optimize your system’s long-term value proposition.
Conclusion
You’ll achieve ideal HVAC efficiency when you’ve properly commissioned your multi-zone system—studies show zoned systems reduce energy consumption by 30-35% compared to single-zone configurations. You’ve now got the technical framework to implement damper controls, smart thermostat integration, and sensor placement strategies. Remember, you’re balancing static pressure across branch ducts while maintaining CFM requirements at each register. Your system’s performance hinges on precise calibration of zone dampers and accurate load calculations for each thermal zone you’ve established.
