For older homes without neutral wires, you have two main options for motion-activated lighting. Choose either specialized no-neutral switches that use capacitive power stealing (requiring 15-40W minimum load) or battery-powered motion sensors that bypass wiring limitations altogether. For LED compatibility, select switches specifically rated for dimmable LEDs with bypass capacitors. Brands like Lutron Caseta and Leviton offer reliable no-neutral solutions with smart home integration capabilities. The following solutions address both technical constraints and modern convenience requirements.
Key Takeaways
- No-neutral motion switches employ capacitive power stealing to operate but require 15-40W minimum lighting loads.
- Battery-powered motion sensors completely bypass the neutral wire requirement and work with any lighting type.
- Smart home systems like Lutron Caseta offer no-neutral dimmer switches that work with proprietary wireless motion sensors.
- Look for motion sensors labeled “dimmable LED compatible” with bypass capacitors for lower minimum load requirements.
- Retrofit solutions like Shelly 1 can be installed behind existing switches to add motion capability without neutral wires.
Understanding No-Neutral Wiring in Vintage Homes
While modern electrical systems require a neutral wire for most smart switches and motion-activated controls, vintage homes built before the 1980s often feature a simplified two-wire electrical configuration that lacks this essential component. These older circuit designs consist of only a hot (line) wire and a load wire running to each switch box, with no neutral return path.
You’ll recognize this wiring arrangement by examining your switch box—if you see only two wires (typically black and red or black and white), you’re dealing with a no-neutral configuration. The absence of a neutral wire creates unique challenges for installing contemporary devices, as modern motion sensors and smart switches need a complete circuit to power their internal electronics.
Current wiring requirements mandate neutral wires in all switch locations, but retrofitting your vintage home’s electrical system would involve substantial renovation costs and complexity.
How Motion Sensors Work Without Neutral Connections
Motion sensors without neutral connections employ capacitive power stealing, where the circuit draws tiny amounts of current through your lighting load even when turned off, creating a return path for the sensor’s electronics. Your installation must meet minimum load requirements—typically 15-40 watts—as insufficient load will cause flickering or prevent proper operation of the sensor circuit. For homes with incompatible lighting loads, battery-powered motion sensors offer an alternative solution, eliminating the need for power stealing techniques while maintaining detection functionality in the absence of neutral wiring.
Capacitive Power Stealing
A clever engineering solution called “capacitive power stealing” enables motion-activated switches to function in electrical systems without neutral wire connections. This technique creates a parasitic power path through the load itself, drawing minute amounts of current to power the switch’s electronics without triggering the light fixture.
| Component | Function |
|---|---|
| Capacitor | Stores harvested energy for circuit operation |
| Resistor | Controls leakage current flow rate |
| Diode | Prevents reverse current flow |
| IC Chip | Manages capacitive load balancing |
| MOSFET | Controls main switching operation |
You’ll encounter power harvesting limitations in this design. The switch requires a minimum 5W load to function properly, making it incompatible with many LED bulbs. Additionally, some switches may exhibit a faint glow when “off” as they continue drawing small amounts of power for operation.
Minimum Load Requirements
Most motion-activated switches without neutral connections rely on precise minimum load requirements to operate effectively. You’ll need to connect loads that draw sufficient current to maintain the circuit’s operation when the switch is off. Typically, these switches specify minimum wattage ratings between 15-25W, below which the circuit fails to function properly.
Your connected lighting must consume enough power to support the switch’s internal circuitry. LED bulbs, which draw only 5-10W, often fall below these thresholds, causing flickering or preventing proper operation. For reliable performance, calculate your total power consumption considerations—sum the wattage of all connected fixtures and guarantee it exceeds the switch’s minimum requirement. Manufacturers often provide compatibility charts showing which lighting technologies work with their no-neutral switches, helping you avoid post-installation issues.
Battery-Powered Options
When electrical installations lack neutral wires, battery-powered motion sensors provide an elegant workaround for modern automation needs. These devices operate independently of your home’s electrical system, requiring no neutral connection whatsoever. The internal circuitry relies entirely on rechargeable batteries that power both the passive infrared (PIR) detection components and the relay mechanism that activates connected lights.
You’ll find these sensors typically operate for 6-12 months before requiring replacement, though models featuring lithium-ion rechargeable batteries can extend battery life considerably. The detection circuitry draws minimal current in standby mode, activating higher-power components only when motion triggers the system. Some advanced models incorporate energy harvesting from ambient light or kinetic energy, further enhancing operational longevity without requiring direct connection to your home’s electrical infrastructure.
Top No-Neutral Motion Switch Brands and Models
When selecting a no-neutral motion switch, you’ll find manufacturers like Lutron and Leviton offer battery-powered models that circumvent traditional wiring limitations. Your installation success depends on understanding each brand’s specific compatibility with existing wiring configurations, particularly in older homes with two-wire systems. Lutron’s Maestro MS-OPS2 and Leviton’s IPS15 represent industry standards that provide detailed wiring diagrams to help you verify compatibility with your specific electrical setup.
Battery-Powered Options Available
Although traditional motion switches typically require neutral wires, battery-powered alternatives offer viable solutions for older homes lacking neutral connections. These devices eliminate installation constraints by using replaceable batteries rather than tapping into your home’s electrical system.
| Brand | Battery Type | Runtime |
|---|---|---|
| Lutron | CR2032 (coin) | 3-5 years |
| Leviton | AA alkaline | 2-3 years |
| GE | AAA lithium | 1-2 years |
| TP-Link | Wireless charging | 6-8 months |
Most models feature low-battery indicators that signal when replacement is needed. Advanced options incorporate wireless charging capabilities, eliminating the need for physical battery replacement. When selecting a battery-powered motion switch, consider battery type, expected runtime, and replacement accessibility. Units with standard battery sizes (AA/AAA) typically offer easier maintenance than proprietary power solutions.
Wiring Compatibility Guide
Beyond battery-powered solutions, several leading manufacturers have engineered motion switches specifically designed to function without neutral wires, addressing compatibility challenges in older electrical systems.

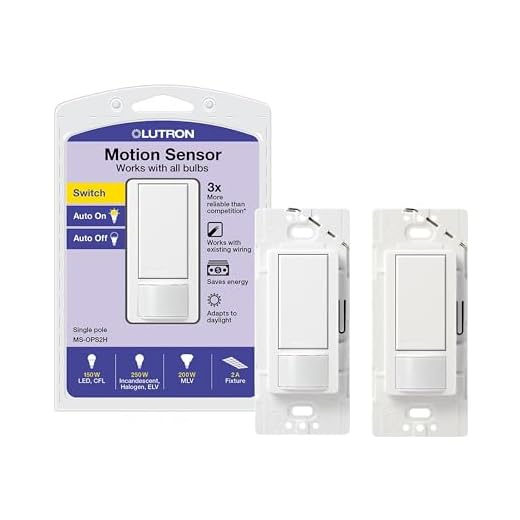

Lutron’s Maestro MS-OPS2 occupancy sensor utilizes capacitive technology to complete circuits without neutral connections while maintaining electrical code compliance. Similarly, Leviton’s IPS02 and IPS06 models incorporate innovative low-current design that bypasses neutral wire requirements by completing the circuit through connected lighting fixtures (minimum 25W load required).
When selecting compatible devices, you’ll need to verify your existing wiring configuration—typically black (hot), white (neutral), and bare copper (ground)—though neutral may be absent in pre-1980s installations. GE’s UltraPro motion switches feature adjustable sensitivity settings specifically calibrated for two-wire systems, ensuring stable performance without ghosting or LED flickering issues common in non-neutral installations.
Installation Guide for No-Neutral Motion Detectors
Installing a no-neutral motion detector presents unique challenges compared to standard motion switches. You’ll need to identify your existing switch box configuration first, confirming the absence of a neutral wire (typically white) while locating the line (power) and load wires.
For reliable installation techniques, always turn off power at the circuit breaker and verify with a voltage tester. Connect the line wire to the “LINE” terminal and the load wire to the “LOAD” terminal on your no-neutral motion switch. Many models require a minimum load of 15-25 watts to function properly—LED compatibility varies by manufacturer.
Proper switch positioning drastically affects detection performance. Mount the sensor at appropriate height (typically 4-5 feet) with unobstructed view of the intended detection zone. Adjust sensitivity and time delay settings after installation to prevent false triggers. For metal electrical boxes, use the included insulating barrier to prevent interference with the sensor’s operation.
Compatibility With LED and Energy-Efficient Bulbs
No-neutral motion detectors face significant compatibility challenges with LED and energy-efficient lighting. These switches require a minimal current flow through the circuit even when “off,” which creates a technical dilemma with low-wattage LED bulbs that don’t draw sufficient power to maintain the switch’s operation.
You’ll need to select specifically labeled “dimmable LED compatibility” motion sensors that include bypass capacitors designed to handle the minimal draw of LED fixtures. These specialized sensors typically specify a minimum load requirement of 10-15 watts, though newer models have reduced this threshold to as low as 5 watts.
The energy saving benefits remain substantial despite these constraints. You’ll achieve approximately 70-80% electricity reduction compared to incandescent alternatives, even with the minimal bleed current. For ideal performance, choose LEDs explicitly rated for use with electronic switches, avoiding flickering issues and premature bulb failure common with incompatible combinations.
Solving Common Issues With No-Neutral Motion Switches
The most persistent issues with no-neutral motion switches stem from improper load balancing and circuit compatibility constraints. When troubleshooting common issues, first verify your switch’s minimum wattage requirements correspond to your lighting load. Many problems arise when LED fixtures draw insufficient current to sustain the switch’s internal circuitry.
| Problem | Cause | Solution |
|---|---|---|
| Random triggering | Voltage leakage | Add a bypass capacitor (10nF) |
| Lights flickering | Insufficient load | Install a resistive load adapter |
| Sensor unresponsive | Improper grounding | Guarantee proper ground connection |
For effective motion sensor troubleshooting, inspect wire connections for loose terminations that create intermittent contact. You’ll need a multimeter to measure voltage drop across the switch when it’s functioning correctly (typically 1-2V). If you’re experiencing false triggers, adjust the sensitivity dial or reposition the sensor away from heat sources, moving curtains, or HVAC vents that might activate the sensor unexpectedly.
Smart Home Integration Options for No-Neutral Systems
Many homeowners with older electrical systems can still embrace smart home automation despite lacking neutral wires. Your path to integration requires selecting compatible devices specifically engineered for no-neutral configurations.
Consider Lutron Caseta or Leviton’s no-neutral dimmer switches, which communicate via proprietary wireless protocols to their respective smart home hub integration systems. These hubs connect to your home network, enabling smartphone control and voice assistant compatibility with Amazon Alexa, Google Assistant, or Apple HomeKit.
Wireless motion sensor options provide alternative solutions that bypass wiring constraints entirely. Battery-powered sensors from Philips Hue, Aqara, or Wyze can trigger actions through their respective hubs without requiring direct connection to your electrical system. Zigbee and Z-Wave protocols offer reliable mesh networking capabilities that extend coverage throughout your home.
For maximum flexibility, explore retrofit solutions like the Shelly 1 that can be installed behind existing switches and configured to work without neutral connections while still offering Wi-Fi connectivity.
Frequently Asked Questions
Will Motion Switches Work With Three-Way Wiring Configurations?
Yes, you can install motion switches in three-way configurations, but verify switch compatibility with your existing wiring. Some models require specific power source options, including neutral or no-neutral variants designed for three-way circuits.
How Do Weather Conditions Affect Outdoor No-Neutral Motion Sensors?
Perilous precipitation compromises your outdoor no-neutral motion sensors. Inclement weather performance degrades during heavy rain or snow. Extreme temperatures also reduce sensor battery longevity. You’ll need weather-resistant models for reliable operation in exposed locations.
Do No-Neutral Motion Switches Increase My Electric Bill?
No-neutral motion switches can marginally impact your monthly utility costs due to their continuous small current draw. This reduces overall energy efficiency considerations compared to neutral-wire models, though savings from automated lighting typically outweigh this drawback.
Can Motion Switches Be Adjusted for Pet Sensitivity?
Yes, you can adjust most motion switches for pet friendly sensitivity. Look for units with configurable detection thresholds, adjustable sensor angles, or masking zones specifically designed for avoiding false triggers from smaller moving objects.
What’s the Typical Lifespan of a No-Neutral Motion Switch?
You’ll be absolutely stunned by their longevity! Typically, a no-neutral motion switch lasts 7-10 years. Installation requirements and maintenance considerations like dust accumulation and electrical surges can drastically impact this operational lifespan expectancy.
Conclusion
You’re now equipped to navigate the unique challenges of no-neutral wiring in older homes. When it comes to motion-activated switches, you don’t need to throw in the towel due to missing neutral wires. With compatible devices from leading manufacturers, proper installation techniques, and troubleshooting strategies for LED compatibility, you can successfully modernize your vintage electrical system while maintaining code compliance and achieving the convenience of motion-activated lighting.
